Seuic AUTOID9N A9 Android Barcode Scanner PDA 4'' Display Handheld PDA Brazil Courier Use Lazada PDA Warehouse Management System
![]() |
(Note:this order link including All functionsAndroid 9.0 OS GMS Version+3GB RAM 32GB ROM+4G+WIFI+GPS+Camera+1D&2D Barcode Scanner!!!)
Support Google Service

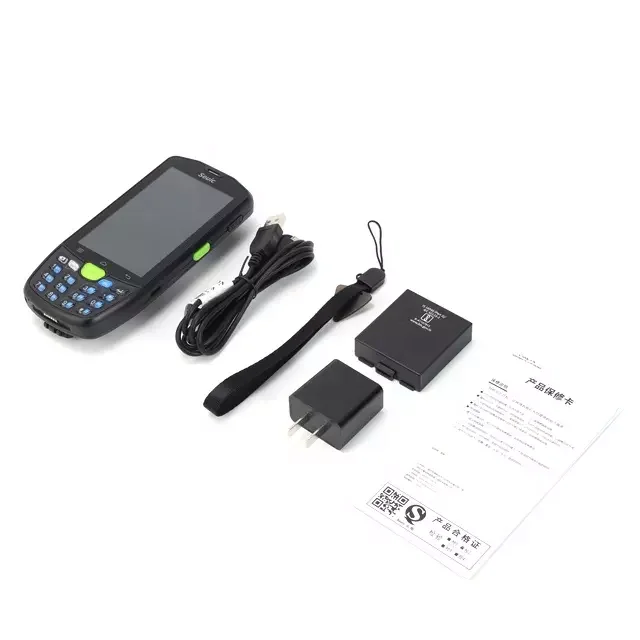

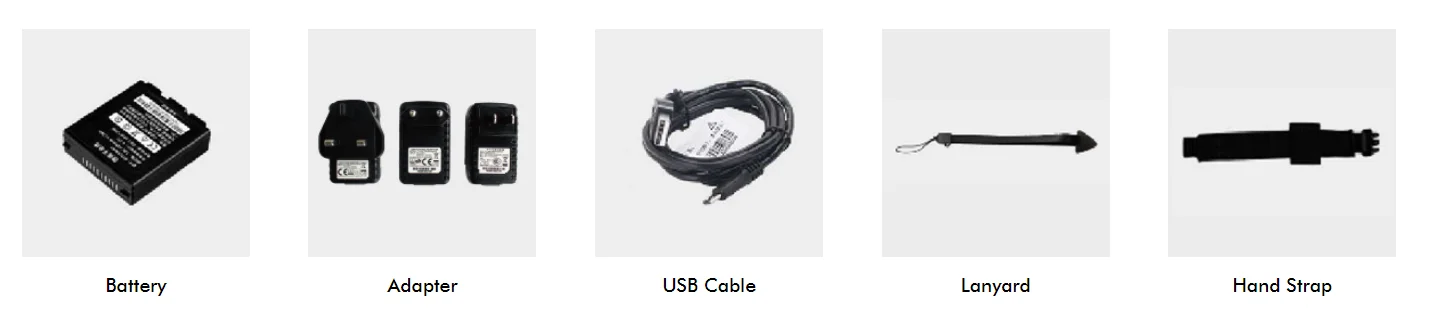

Standard Accessories
Universal Adapter×1
USB Cable×1
Hand Belt×1
battery×1
Hand
Tether×1

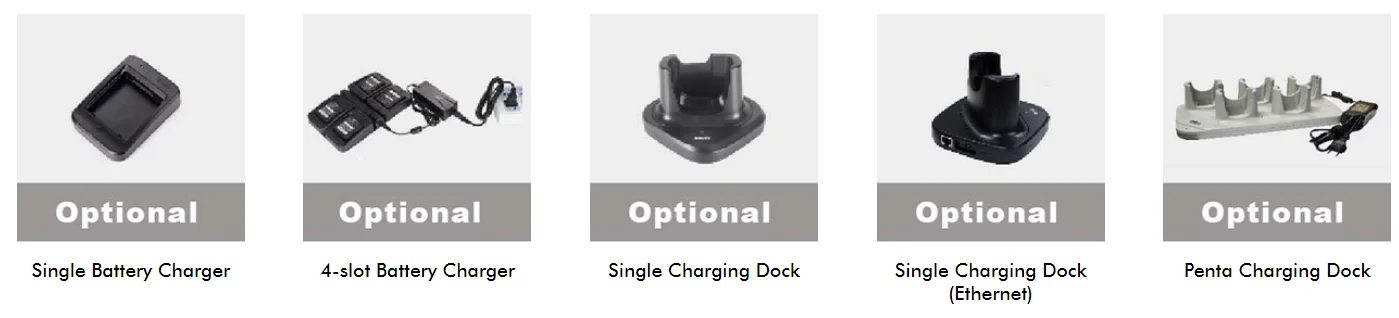

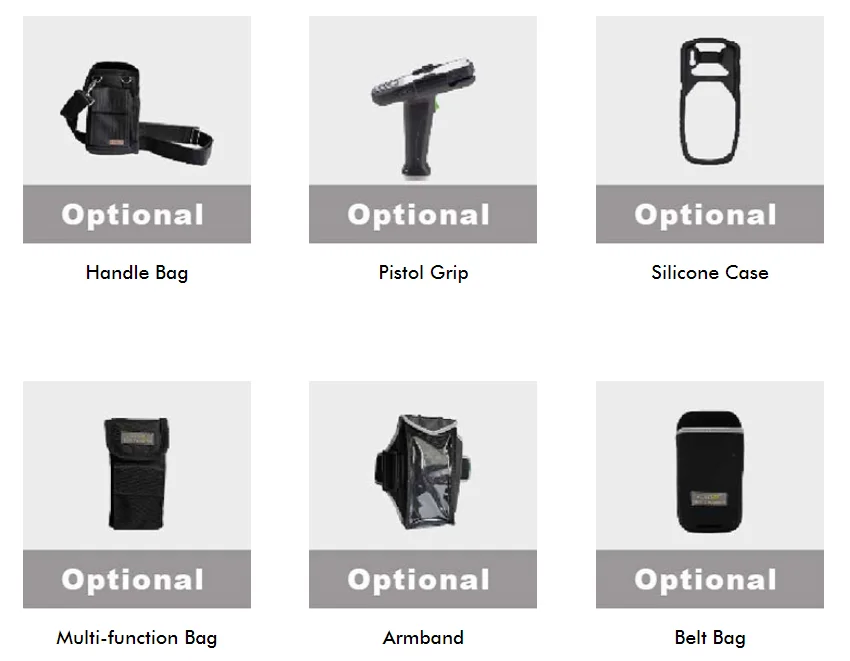

Optional Accessories
Single Slot Battery Charger, Four-slot Battery Charger, Single Slot
Charging Dock, Single Slot Charging Dock (support ehernet), Five-slot
Charging Dock, Five-slot Charging Dock(support ehernet), Grip handle,
Vehicle charger rack, Vehicle charger, OTG data cable, Multifunctional
bag, Grip handle bag, Touch pen, Screen protector, PDA protective casing
If you need any optional accesories above,please contact our seller to add:Mason Mei +86 18682169806(WhatsApp/Skype/Mobile)
email:mason@msench.com
Product Details

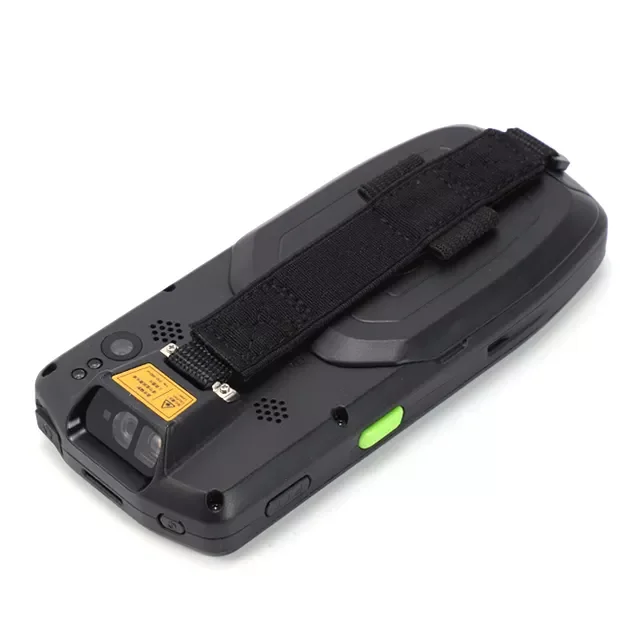

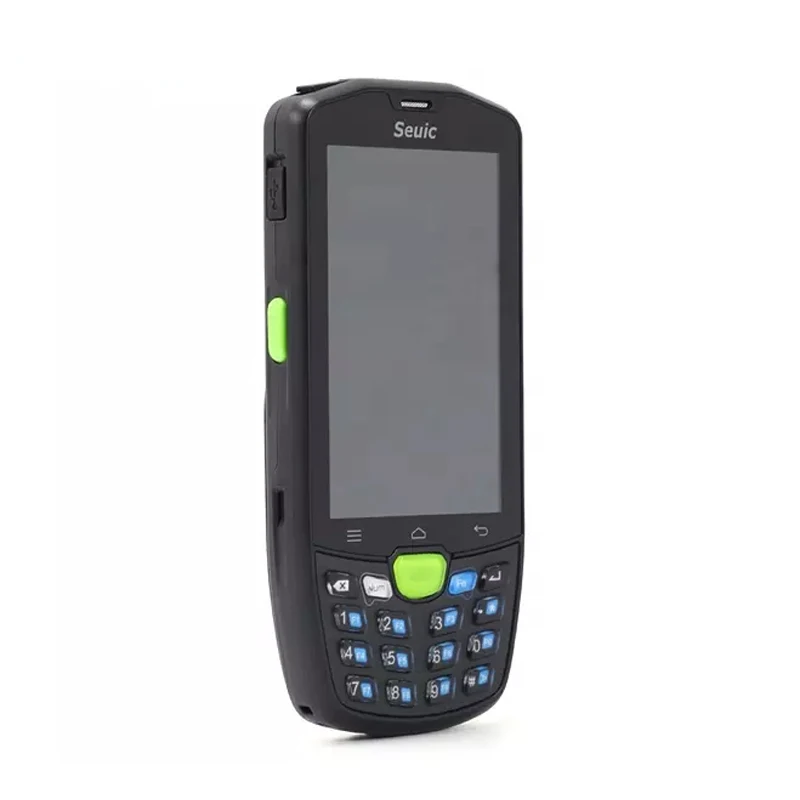

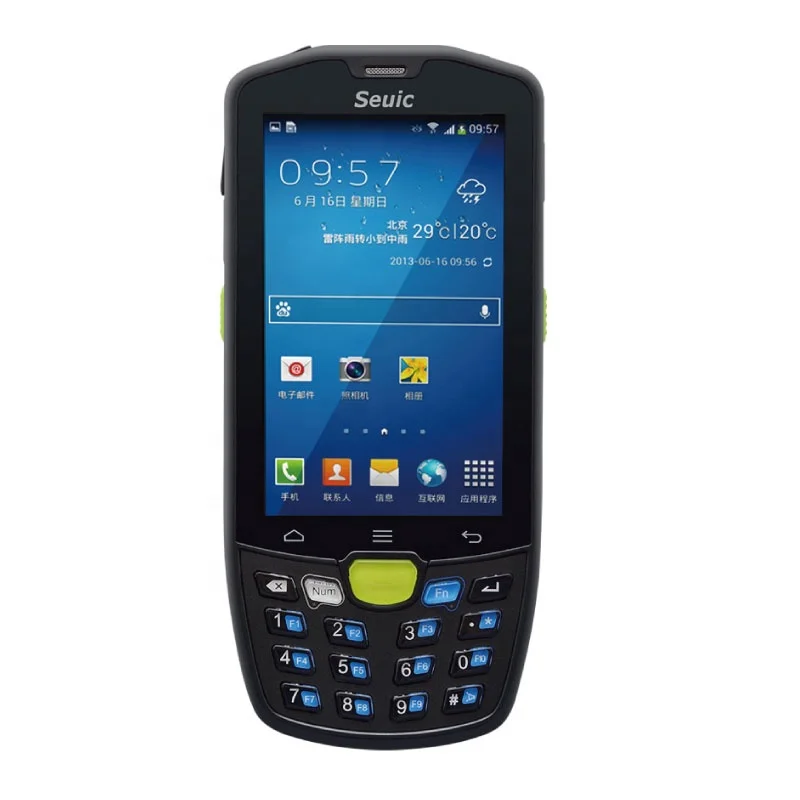

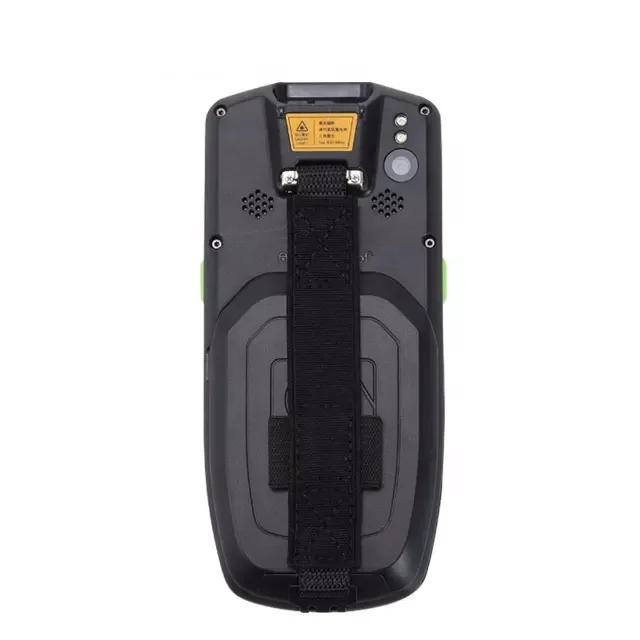

Product Real Picture
Product Specifications
1.NEW AUTOID®9-9.0 PERFORMANCE CHARACTERISTICS
CPU | Cortex™-A53 Octa-core 1.8GHz |
Operating System | Android 9.0 |
RAM | 3GB |
ROM | 32GB |
Expansion Slot | Micro SD Card, 32GB SDHC compatible |
Interface/Communication | Industrial Mircro USB interface supports USB2.0 High Speed, supports OTG, USB supports serial port. |
Keypad | 17keys/22 crystal keys |
LED(buttons with backlight) | |
Display | 4.0 inch size industrial grade low temperature resistant, Capacitive, touchable, dual mode touch-with or without a thick glove / with or without wet hand |
800(H)×480(W) (WVGA) | |
Power | Detachable 3.8V 4000mAh rechargeable Li-ion battery, (Built 3.7V 60mAh in li-ion backup battery and voltmeter) |
Side interface: Standard Micro USB, support quick charge, intelligent identification of PC and special charger; Bottom flap charging interface: Support quick charge, USB data transmission intelligent identification of PC and special charger | |
Notification | Sound, Vibrator, LED indicator |
Audio | Built-in dual loudspeaker8Ω/0.8W*2or built-in single loudspeaker4Ω/2W, built-in microphone,3.5mm stereo headset interface. |
Sensor | Acceleration sensor, Electronic compass, Optical sensor and gyroscope |
Dimension | 156(H)×70(W)×22(T)mm , (it’s 27mm for the scanner part) |
Weight(including standard battery) | 270g (battery included, varies by different configurations) |
Operating Temp | -20℃to +50℃ |
Storage Temp | -40℃to + 60℃(Battery included) -40℃to + 70℃(Battery excluded) |
Humidity | 5% to 95% RH non-condensing |
Sealing | IP67 |
Drop Specification | Multiple 1.5m drops to concrete across the operating temperature range |
Tumble Specification | 1,000 1.64 ft./0.5 m tumbles (2,000 impacts) |
ESD | ±15kV Air discharge,±8kV direct discharge |
1.NEW AUTOID®9-9.0 DATA CAPTURE OPTIONS
Option 1 | 1D Laser Scan Engine (option1) |
Scan Accuracy | 5mil |
Rotate | ±35° |
Pitch Angle | ±65° |
Skew Tolerance | ±50° |
Ambient Light | Sunlight: 10,000ft. Candles(107,640Lux) |
Artificial light:450ft.candles(4,844Lux) | |
Scan Frequency | 100±10/sec |
Scan Width | 47° |
Laser safety grade | Class II |
Code Support | UPC/EAN, POST, Code 128, Code 39, Code 93,Code 11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSSI etc. |
Option 2 | 1D Laser Scan Engine (option2) |
Scan Accuracy | 5mil |
Rotate | ±35° |
Pitch Angle | ±65° |
Skew Tolerance | ±50° |
Ambient Light Immunity | Sunlight: 10,000ft. Candles(107,640Lux) |
Artificial light: 450ft. Candles(4,844Lux) | |
Scan Depth | 17.78cm(5mil),66.04cm(15mil) |
Scan Frequency | 104±12/sec |
Scan Width | 47°/35°/10° |
Laser safety grade | Class I |
Code Support | UPC/EAN, POST, Code 128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSSI etc |
Option 3 | 2D Image Scan Engine (option 3) |
Sensor Resolution | 844(H)×640(V) |
Rotate | 360° |
Pitch Angle | ±45° |
Skew Tolerance | ±65° |
Laser safety grade | Class II |
Image frame rate | 60fps |
Code Support | Aztec Code, Codabar, Codablock F, Code 11, Code 128, Code 2 of 5, Code 39, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN 8,EAN-UCC Composite Codes, EAN-UCC Emulation, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI, PDF417,Postal Codes (Australian Post,British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet), Plessey Code, PosiCode, QR Code, RSS Expanded, RSS Limited, RSS-14, TCIF Linked Code 39, Telepen, Trioptic Code, UPC-A, UPC-E etc. |
Light source system | White light, laser aiming |
Minimum printing contrast | 20% |
Option 4 | 2D Image Scan Engine (option 4) |
Sensor Resolution | 1280(H)×800(V) |
Rotate | 360° |
Pitch Angle | ±60° |
Skew Tolerance | ±55° |
Laser safety grade | Class II |
Image frame rate | 60fps |
Scan depth | Code128: 25.5cm(7mil),52.5cm(20mil) QR code: 10cm(10mil),34cm(20mil) |
Code support | UPC/EAN, UPC/EAN , Code128, GS1-128, Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial2 of 5,Codabar, MSI,Code11,PDF417, MicroPDF417,Data Matrix, Maxicode, QR Code, MicroQR, Aztecetc. |
Light source system | White light, Red cross-shape laser aiming |
Minimum printing contrast | 20% |
Option 5 | 2D Image Scan Engine (option 5) |
Sensor Resolution | 1280(H)×800(V) |
Rotate | 360° |
Pitch Angle | ±60° |
Skew Tolerance | ±55° |
Laser safety grade | Class II |
Image frame rate | 60fps |
Scan depth | Code128: 10cm(5mil),80cm(20mil) |
Code support | UPC/EAN, UPC/EAN , Code128, GS1-128, Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial2 of 5,Codabar, MSI ,Code11etc. PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, etc. |
Light source system | White light, Red cross-shape laser aiming |
Minimum printing contrast | 20% |
Option 6 | 2D Image Scan Engine (option 6) |
Sensor Resolution | 1280(H)×800(V) |
Rotate | 360° |
Pitch Angle | ±60° |
Skew Tolerance | ±55° |
Laser safety grade | Class II |
Image frame rate | 60fps |
Scan depth | 20 mil c39 35mm to 800mm |
Code support | UPC/EAN, UPC/EAN , Code128, GS1-128, Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial2 of 5,Codabar, MSI ,Code11, etc. PDF417, MicroPDF417,Data Matrix, Maxicode, QR Code,MicroQR, Aztec,etc. |
Light source system | White light, Red cross-shape laser aiming |
Minimum printing contrast | 20% |
Option 7 | GPS |
Positioning system | GPS, Beidou, GLONASS(Three in one) |
Frequency | GPS: L1(1.575GHz); Beidou: B1(1.561GHz); GLONASS:L1(1.602GHZ) |
Maximum number of channels | 31channels |
Sensitivity | -130dB(SNRvalue as 40dBHz) |
Accuracy | 5-10meter(OPEN SKY) |
Option 8 | Camera |
Maximum Resolution | 3264*2448(taking photo), 1080P 60fps (making video) |
Photo Function | Auto-focus |
Flashlight | Support dual flashlights |
Pixel | 13 mega |
Option 9 | RFID Read/write(HF) |
Standards Support | Support ISO15693,ISO14443A/B(without encryption protocol), ISO14443A tag with encryption protocol(Mifare one S50,S70 anditscompatible cards); Support NFC protocol |
Operating Frequency | HF frequency band 13.56MHz |
Reading Range | Typical values biggerthan 6cm for ISO15693, Typical values biggerthan 4cm for ISO14443A , and Typical values biggerthan 1cm for ISO14443Bvaries by different tags. |
Resolution | 508DPI |
2.NEW AUTOID®9-9.0 WIRELESS DATA COMMUNICATIONS
Option 1 | WLAN WIFI |
Protocol | IEEE 802.11a/b/g/n/ac(2.4G/5G dual-frequency WIFI) |
Frequency Range | Depends on different countries (regions), 2.4GHz: 2.4GHz-2.496GHz;5GHz: 5.15GHz-5.85GHz |
Working Channel | CH1~CH14, CH34-CH140, CH149~CH165 |
Security | OPEN,WEP,WPA/WPA2,TLS,TTLS(MS-CHAP), TTLS(MS-CHAP v2), TTLS (CHAP), TTLSMD5, TTLS-PAP, PEAP-TLS, PEAP(MS-CHAP v2)etc. |
Data Rate | 802.11a: 6,9,12,18,24,36,48,54Mbps 802.11b: 1,2,5.5,11Mbps 802.11g: 6,9,12,18,24,36,48,54Mbps 802.11n: 6.5,13,19.5,26,39,52,58.5,65Mbps(20MHz,Long GI,800ns) 802.11n:7.2,14.4,21.7,28.9,43.3,57.8,65,72.2Mbps(20MHz,short GI,400ns) 802.11n: 6.5,13,19.5,26,39,52,58.5,65Mbps(20MHz,Long GI,800ns) 802.11n:7.2,14.4,21.7,28.9,43.3,57.8,65,72.2Mbps(20MHz,short GI,400ns) 802.11n:13.5,27,40.5,54,81,108,121.5,135Mbps(40MHz,Long GI,800ns) 802.11n:15,30,45,60,90,120,135,150Mbps(40MHz,short GI,400ns) 802.11ac:6.5,13,19.5,26,39,52,58.5,65,78Mbps(20Mhz,Long GI,800ns 802.11ac:7.2,14.4,21.7,28.9,43.3,57.8,65,72.2,86.7(20MHz,short GI,400ns) 802.11ac:13.5,27,40.5,5481,108,121.5,135,162,180Mbps(40Mhz,Long GI,800ns 802.11ac:15,30,45,60,90,120,135,150,180,200Mbps(40MHz,short GI,400ns) 802.11ac:29.3,58.5,87.8,117,175.5,234,263.3,292.5,351,390Mbps(80Mhz,Long GI,800ns 802.11ac:32.5,65,97.5,130,195,260,292.5,325,390,433.3Mbps (80MHz,short GI,400ns) |
Antenna | Built-inantenna |
Option 2 | WWAN WCDMA (All network: 7 modes 22 frequency) |
Frequency Band | GSM: Qual Band(850/900/1800/1900Mhz) TD-SCDMA: Band34,Band39 WCDMA: Band1,Band2,Band5,Band8 CDMA 1x /EVDO : BC0\BC1 TDD-LTE: Band38,Band39,Band40,Band41 FDD-LTE: Band1,Band2, Band3, Band5, Band7, Band8 |
Communication Rate | GPRS: DL / UL171.2kbps;EDGE: DL / UL384 kbps TD: DL 4.2 Mbps / UL 2.2 Mbps DC-HSPA+: DL 42Mbps / UL 5.76 Mbps CDMA1x: DL 153.6kbps/ UL 153.6kbps;EVDO: DL 3.1 Mbps / UL 1.8 Mbps TDD-LTE: DL 117 Mbps / UL 30 Mbps(CAT4) FDD-LTE: DL 150 Mbps / UL 50 Mbps(CAT4) |
Option 3 | WPAN Bluetooth |
Standard | Bluetooth 4.2(Support BLE) |
Power | Class II |
3.NEW AUTOID®9-9.0 THIRD PARTY APP DEVELOPMENT SUPPORT
System Software | Android 9.0 |
System programming environment | Eclipse, Android Studio |
4.NEW AUTOID®9-9.0 PERIPHERALS AND ACCESSORIES
Standard Accessories | Universal Adapter×1, USB Cable×1, Hand Belt×1, battery×1, Hand Tether×1 |
Optional Accessories | Single Slot Battery Charger, Four-slot Battery Charger, Single Slot Charging Dock, Single Slot Charging Dock (support ehernet), Five-slot Charging Dock, Five-slot Charging Dock(support ehernet), Grip handle, Vehicle charger rack, Vehicle charger, OTG data cable, Multifunctional bag, Grip handle bag, Touch pen, Screen protector, PDA protective casing |
